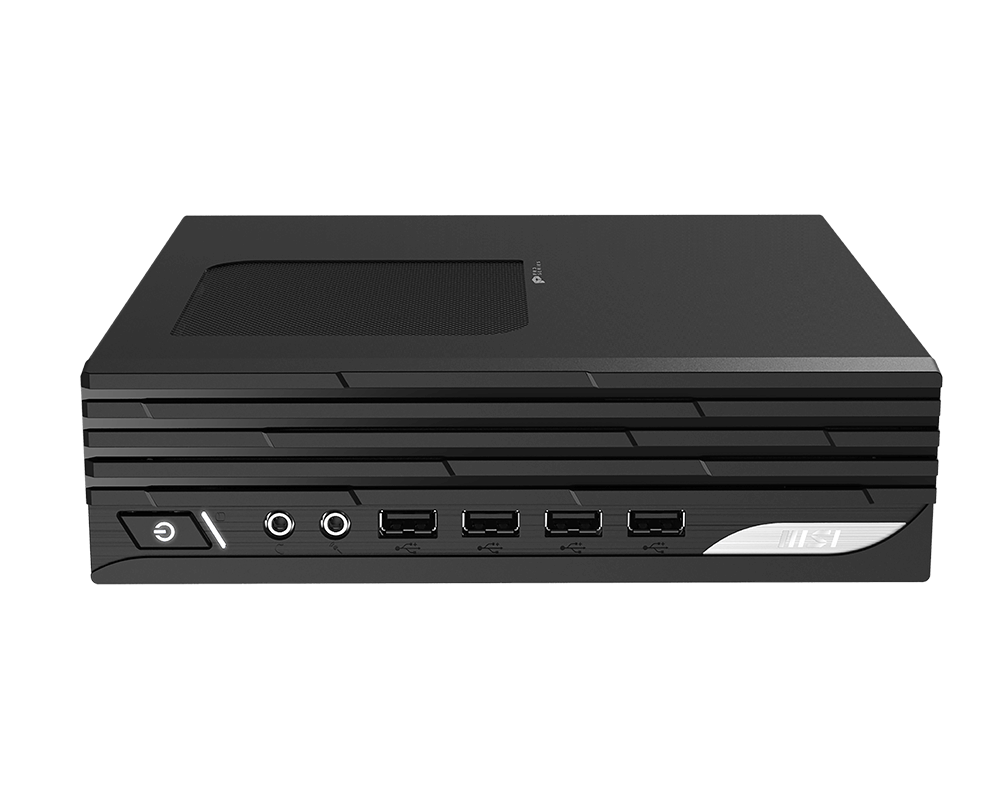

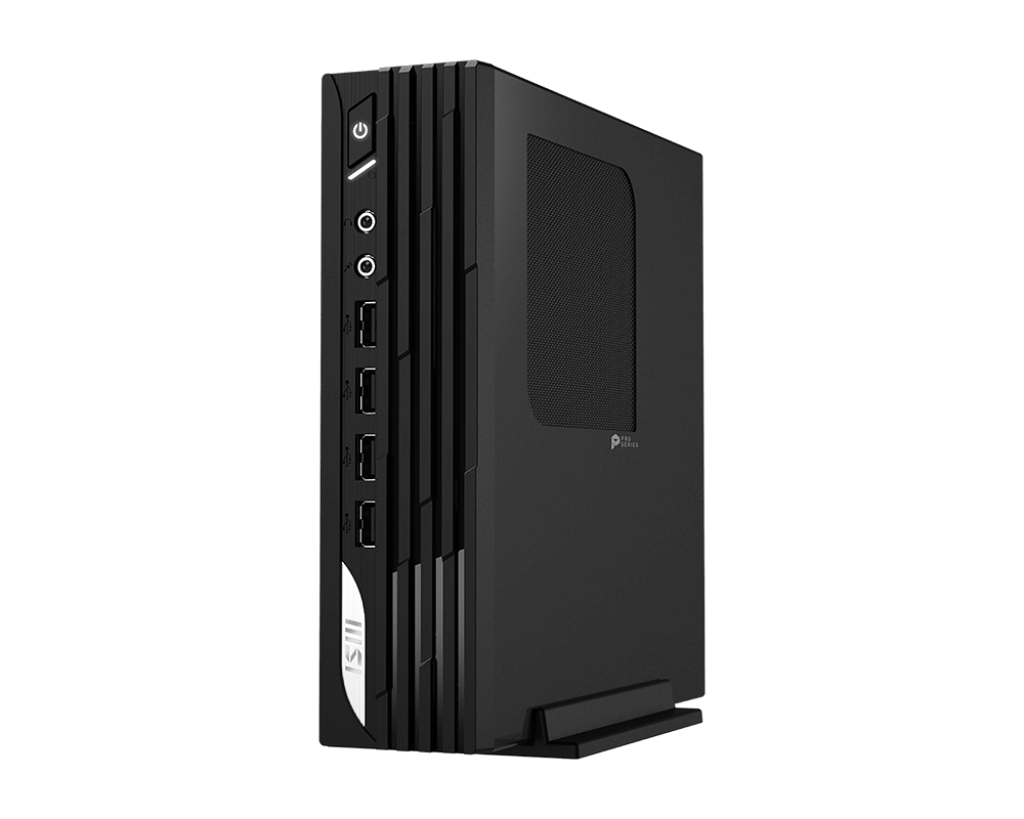

MSI PRO DP21 11M-017TH

25,340.00 ฿

25,340.00 ฿ - 25,340.00 ฿

25,340.00 ฿

Quantity

Payment Methods

Windows 11 Home (MSI recommends Windows 11 Pro for business.)
Intel® i7-11700
Intel® UHD Graphics 750
DDR4 8GB (8GB*1)
1T 2.5" HDD
256G M.2 PCIe SSD
4 x USB 3.2 Gen 1 Type A (R)
Support VESA Mount 100 x 100 mm
Support 4K UHD Display
Connection Support Wi-Fi 6
3 Years Warranty

Ready For Various Scenarios

We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

Tiny Yet Powerful

Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday.

Opportunity To The World for Your E-Commerce / M-Commerce

It is indispensable to have a stable data & information platform for your growing E-commerce/ M-commerce.

- Up to core i7-11700

- Up to 64GB Dual Channel DDR4

- Support Windows 10 Pro (Free upgrade to Windows 11 when available)

Support Up To 4K Resolution

PRO DP21 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

2 COM Ports Design

With multiple COM and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more. Its COM ports can also communicate with the programmable logic controllers (PLCs) or with other modules such as operator/HMI, motor controllers, a robot or vision system in the intelligent factory.

FW TPM SUPPORT

FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

Wi-Fi 6 Technology

Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited.

-3X Faster Processor
-75% Latency
-Up to 2.4 Gbps

Easy Maintenance

Users can easily upgrade one M.2 SSD, two 2.5” HDD/SSD and two DIMMs of memory by disassembling the side covers. Make PRO DP21 an even flexible desktop and also reduce the time wasting on upgrading.

Various IO Ports

With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devises to make you work more efficiently.

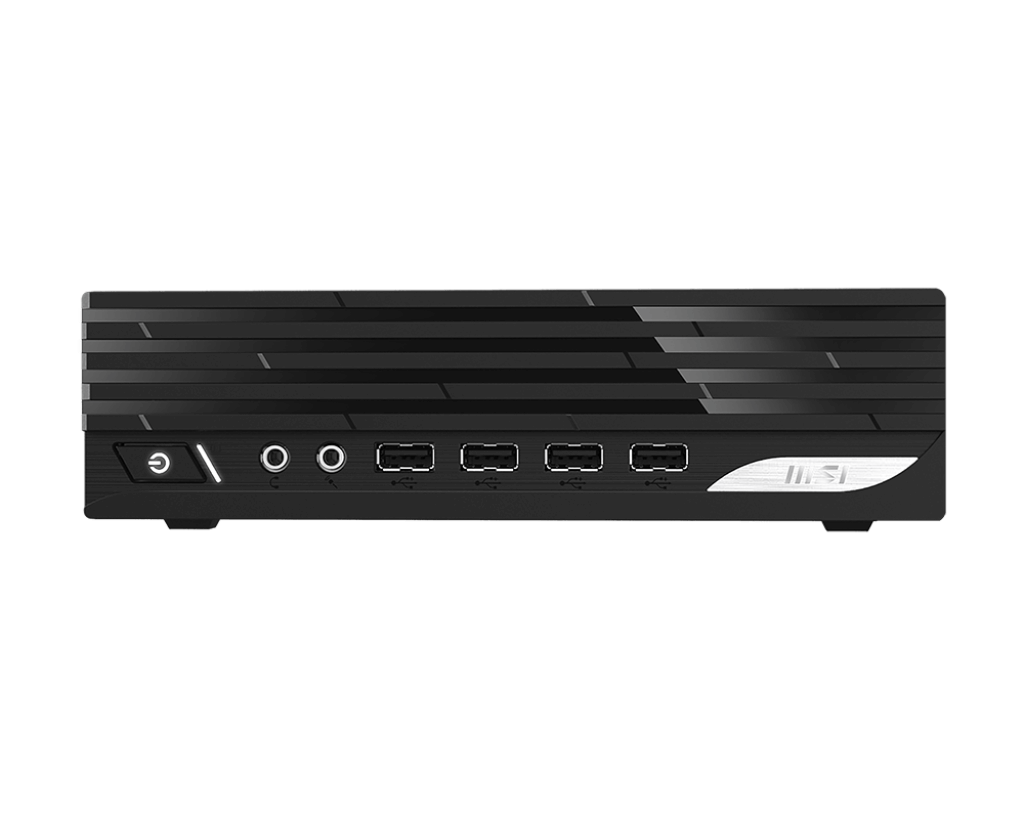

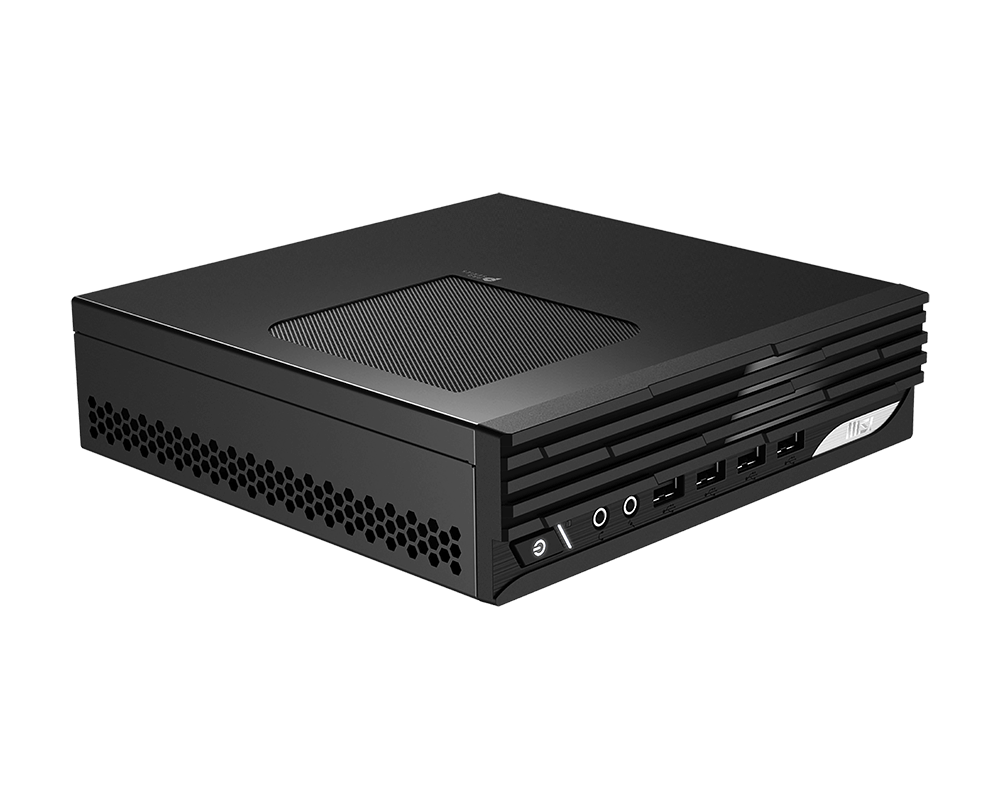

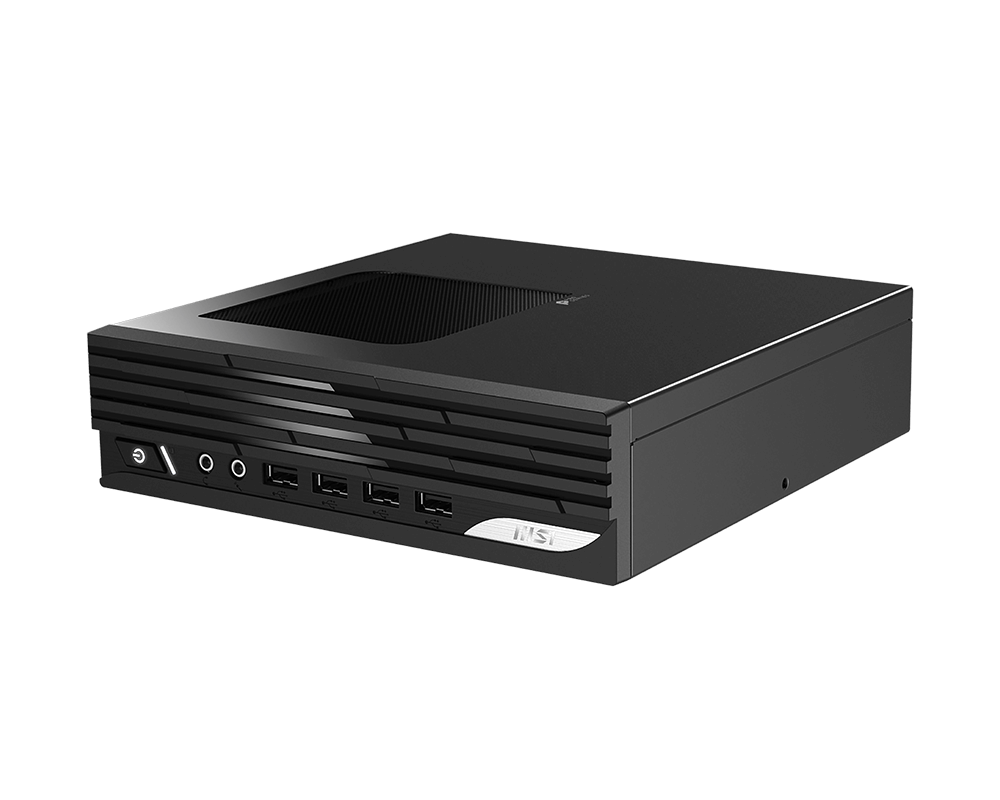

FRONT :
1. 1x Headphone-out
2. 1x Mic-in
3. 4x USB 2.0 Type A

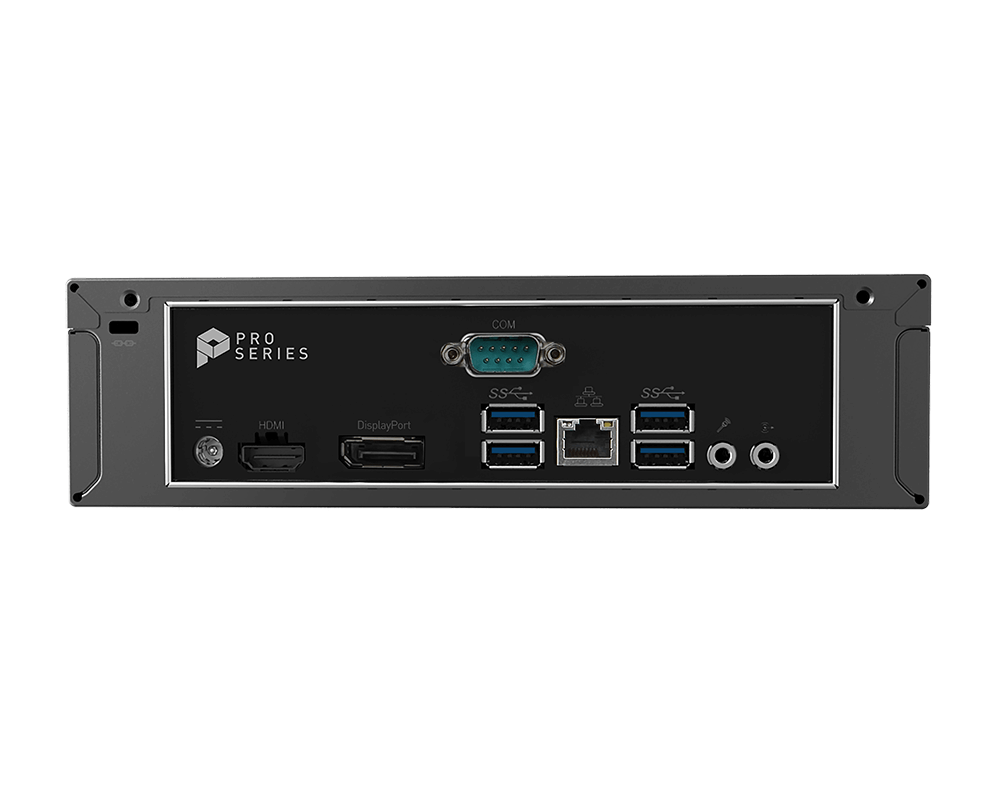

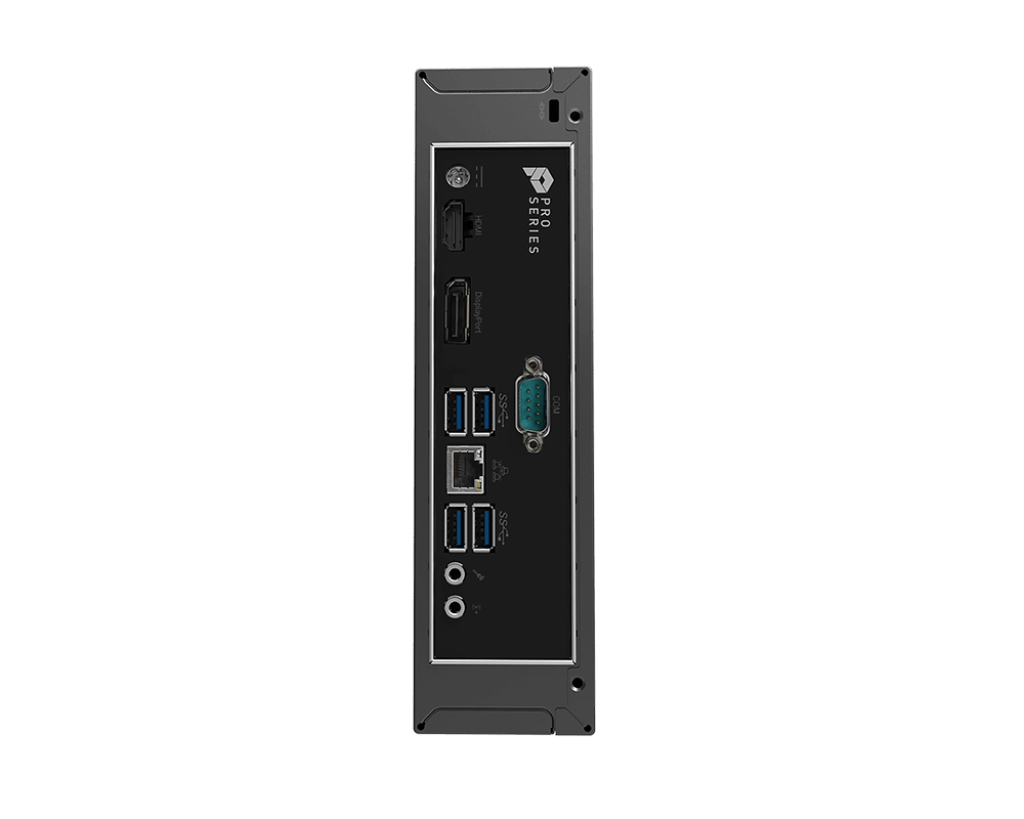

Rear :
4. 1x DC Jack
5. 1x HDMI out
6. 1x COM Port
7. 2x USB 3.2 Gen1 Type A
8. 1x RJ45
9. 2x USB 3.2 Gen1 Type A
10. 1x Mic-in
11. 1x Line-out
12. 1x COM Port (optional for accessory)

Spec Table

Operating Systems	Windows 11 Home (MSI recommends Windows 11 Pro for business.)
EAN	4719072842727
Part No	9S6-B0A411-017
MKT Name	PRO DP21 11M
MKT Spec	PRO DP21 11M-017TH
Color	ID1/Black-Black-Black
CPU Number	Intel Core i7-11700
CPU Clock	2.5GHz
CPU Cores	8
TDP	65W
Cache	16 MB Intel® Smart Cache
Threads	16
CPU Cooler	Air cooling
Chipsets	H510
Memory	Memory Size 8GB(8GB*1)Memory Type DDR4 SDRAMMemory Speed 1600(3200)MHzModule Type SO-DIMMMemory Slot(Total) 2Memory Slot(Free) 1Max Capacity Max 64GB
Storage	SSD Size 256GBHDD1 Size 1TB1(256GB1) SSD Form Factor M.2-2280 M-KEYM.2 slots(Total) 1M.2 slots(Free) 0(7200RPM) HDD1 Form Factor 2.5 inch 7mmHDD1 Interface SATA GEN33.5" Drive Bays(Free) 02.5" Drive Bays(Total) 22.5" Drive Bays (Free) 1
SSD Interface	PCIe GEN3x4 w/o DRAM NVMe
LAN	Realtek RTL8111H
WLAN	INTEL/AX201.NGWG.NVW
WLAN Version	802.11ax 2x2+BT
BT Version	5.2
Audio	Realtek ALC897, 5.1 Channel HD Audio
USB 2.0 Type A	4
Audio Mic-in	1
Audio Headphone-out	1
I/O Ports (Rear)	4 x USB 3.2 Gen 1 Type A (R)
RJ45	1
HDMI™ out	1x (v2.0)
COM Port	2
Power	120W, ADAPTOR
Keyboard Interface	USB
Mouse Interface	USB
Power Cord	1
AC Adaptor	1
Warranty Card	1
Quick Guide	3
Keyboard	SK9626M
Mouse	SM9023M
Operating, Storage Temperature	0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity	0% ~ 85%;0% ~ 90%
Regulatory Compliance	FCC(Class B) CB/CE UL(CUL) BSMI
Product Dimension (WxDxH) (mm)	204 x 208 x 54.8
Product Dimension (WxDxH) (inch)	8.03 x 8.19 x 2.16
Inside Carton Dimension (WxDxH) (mm)	TBD x TBD x TBD
Inside Carton Dimension (WxDxH) (inch)	TBD x TBD x TBD
Outer Carton Dimension Standard (WxDxH) (mm)	271 x 382 x 122
Outer Carton Dimension Standard (WxDxH) (inch)	10.67 x 15.04 x 4.8
Weight (Net kg)	1.27
Weight (Gross kg)	2.75
Liter	2.3
VESA size	100 x 100 mm
Warranty	36months
