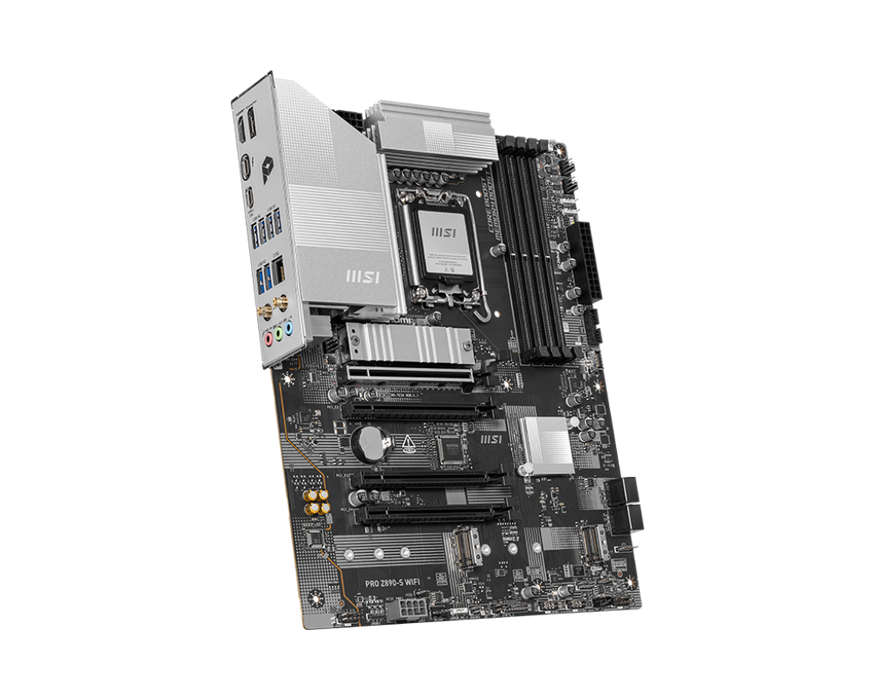

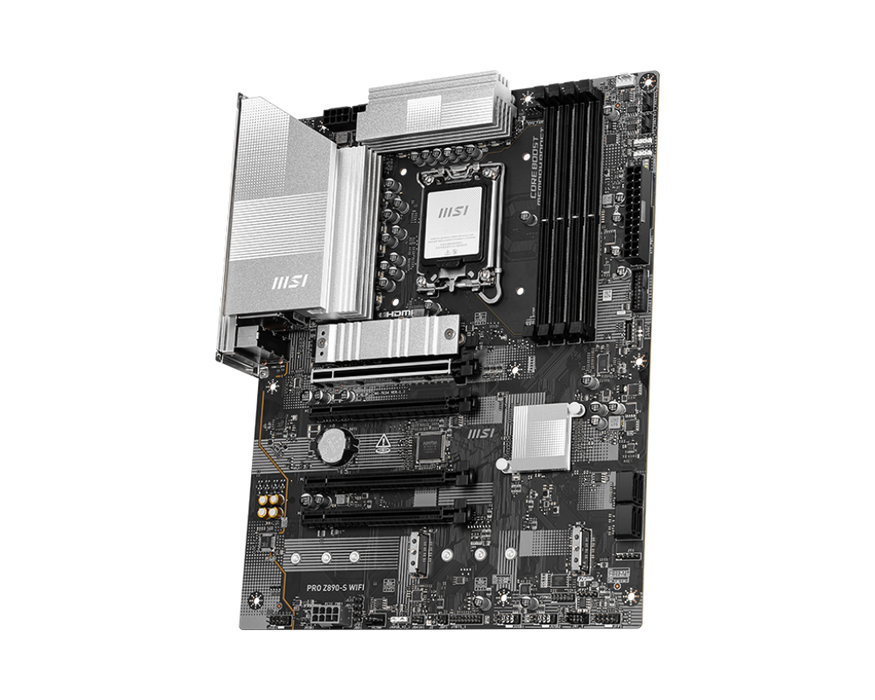

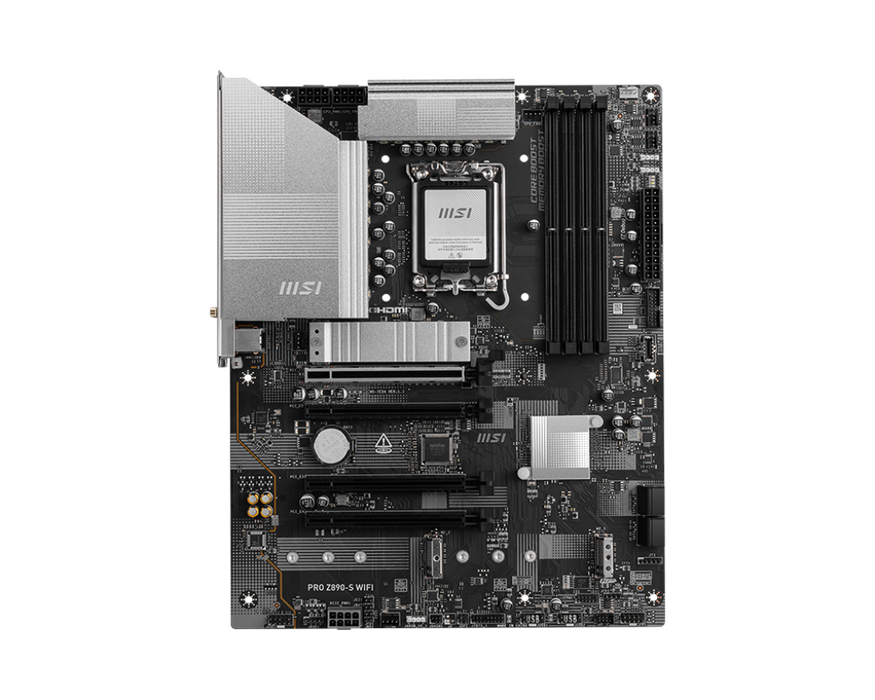

The PRO Z890-S WIFI motherboard supports Intel Core Ultra Processors (Series 2).

• Form Factor: ATX
• Socket Type: LGA 1851
• Chipset: Intel Z890

With exclusive Core Boost technology and EZ OC Tuning functions, the PRO Z890-S WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 12 Duet Rail Power System (P-PAK)
• 1-Phase SA Power
• 1-Phase GT Power
• 1-Phase VNNAON Power

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

• 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
• 2 x PCIe 4.0/3.0 x16 slots*
• 1 x PCIe 3.0 x1 slot

*Support x16/x4/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

The PRO Z890-S WIFI motherboard features MSI's M.2 slots:

1 x Gen5 x4 128Gbps slot (with M.2 Shield Frozr)

2 x Gen4 x4 64Gbps slots

The DIY Friendly designs optimize the assemble process and experience.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

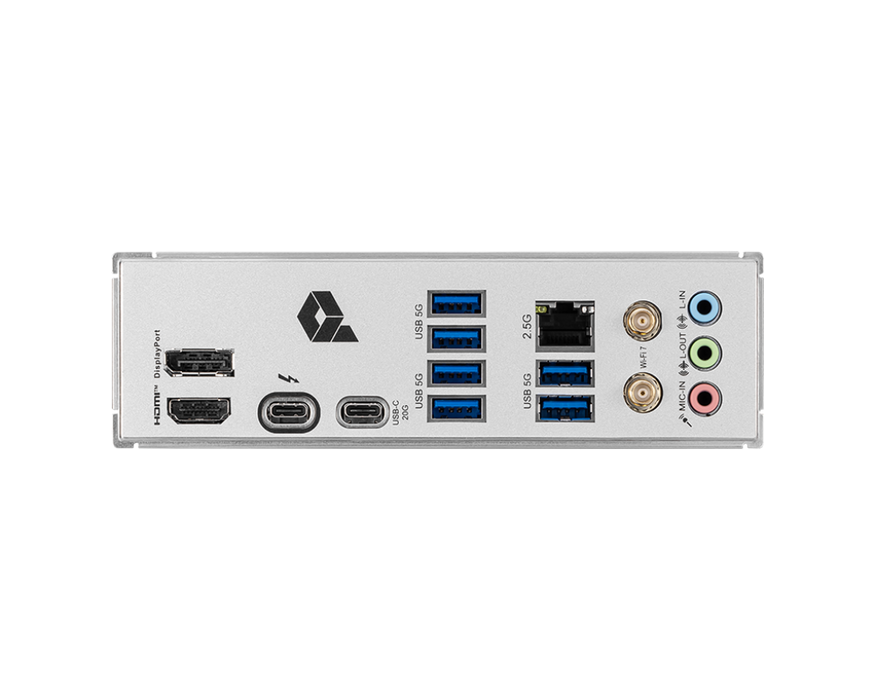

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
