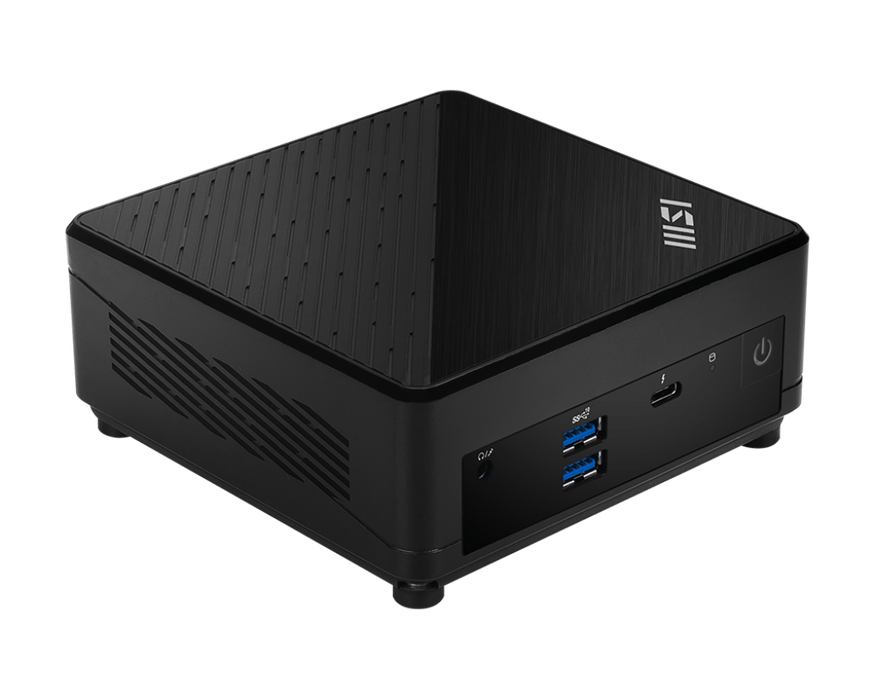

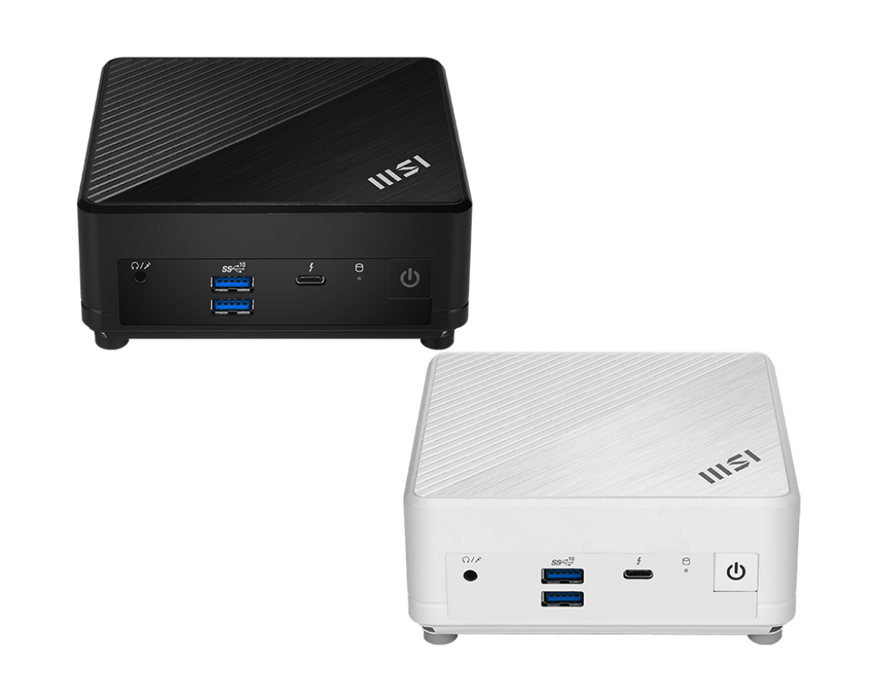

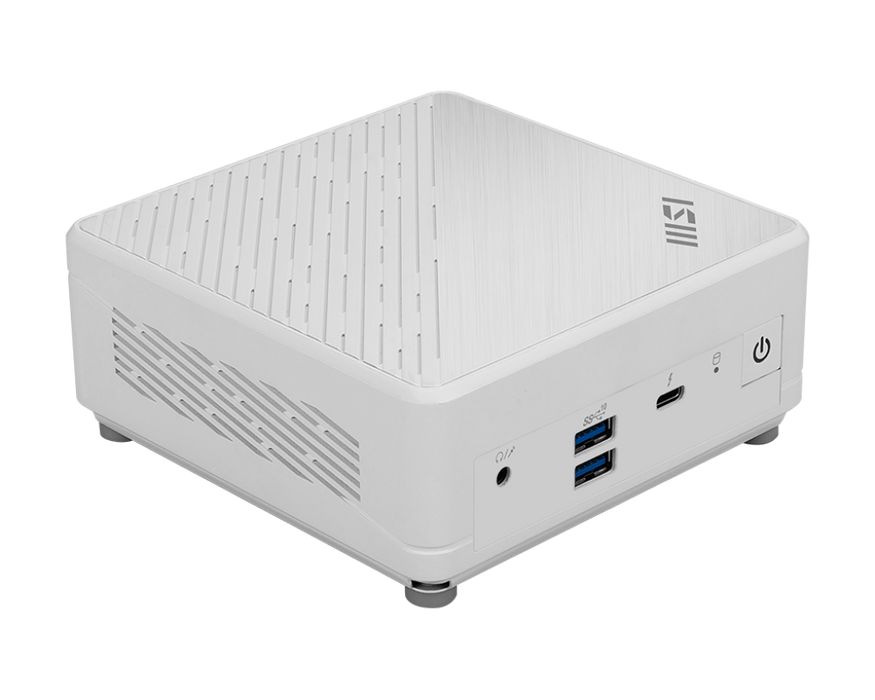

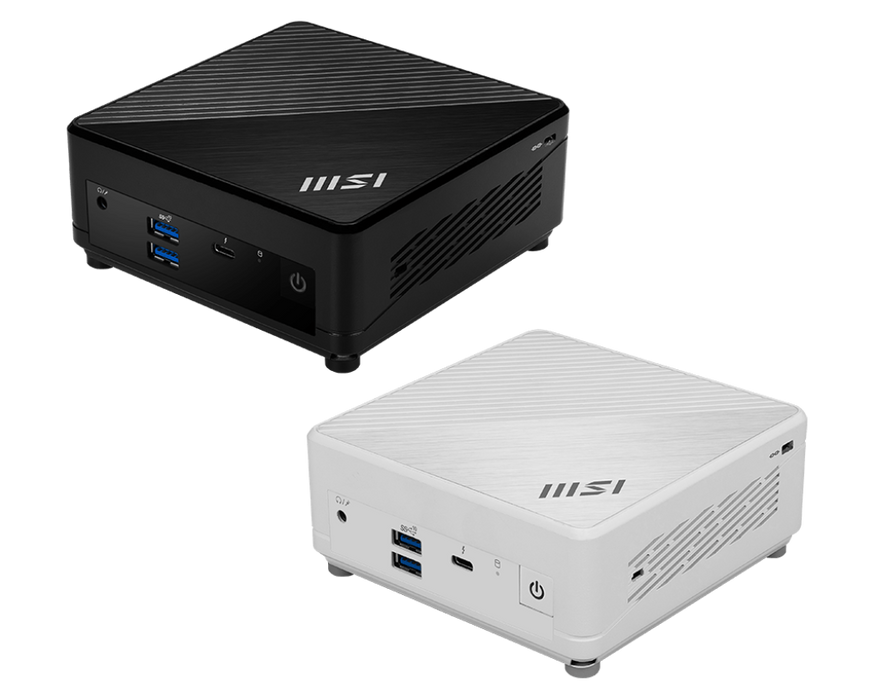

MSI Cubi 5 12M-094BTH

16,900.00 ฿
16,900.00 ฿ - 16,900.00 ฿
16,900.00 ฿ - 16,900.00 ฿
16,900.00 ฿

Payment Methods

    Visa Mastercard
  • Cubi 5 12M-094BTH-B71255UXX
  • OS : FREE DOS
  • CPU : Intel i7-1255U
  • Color : Black
  • MB : Intel SOC
  • VGA : Intel® UHD Graphics
  • Memory : -
  • SSD : -
  • WIFI+BT : Intel® Wi-Fi 6E AX211 + BT 5.3
  • KB + Mouse / Accessories : USB+Ext. Power Switch
  • PSU : 65W
  • Warranty : 3 years

Document

The Energy Efficient Mini-PC

The Cubi 5 12M is a complete system equipped with an Intel 12th Gen Core processor, DDR4 memory, M.2 SSD storage, and Windows 11 software pre-installed. With triple monitor support, Thunderbolt 4 connectivity, Intel Wi-Fi 6E, and dual LAN network capabilities, the Cubi 5 12M is compact, versatile, yet capable mini desktop PC for home or the office.

Compact

The Cubi 5 12M Mini PC comes in a palm-sized 124 x 124 x 53.7 mm case (0.66L/0.57kg) with far less performance trade off compared to laptops.

Capable

RAM: The Cubi 5 12M includes DDR4 memory (2 x SO-DIMMs, expandable up to 64 GB).

Storage: The Cubi 5 12M comes with M.2 SSD storage for faster loading times.

The Cubi 5 12M can be upgraded with 1 x 2.5" SATA HDD/SSD

Triple Display Support

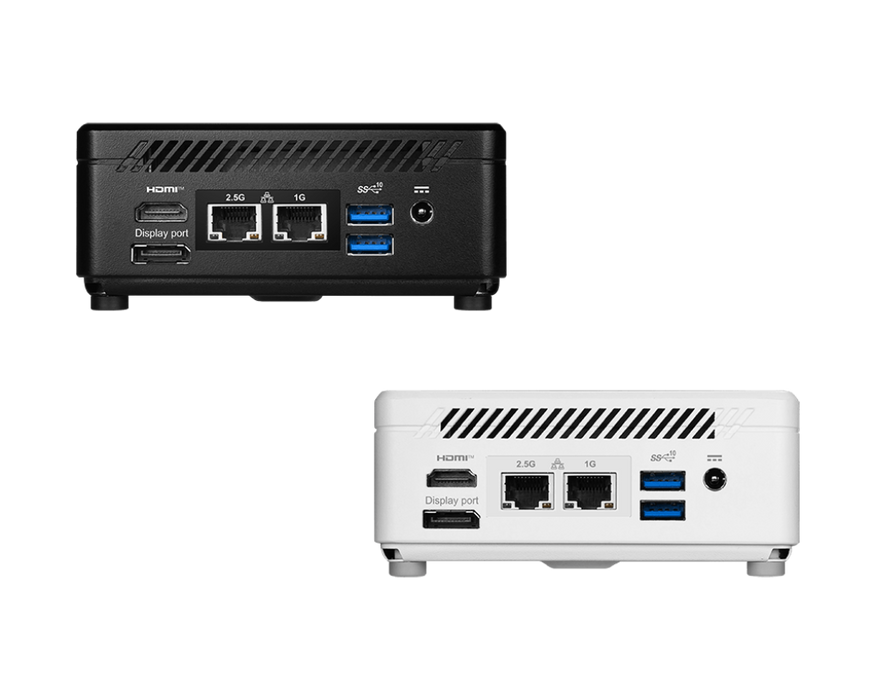

The I/O panels include HDMI™ 2.0b, DisplayPort 1.4 & Thunderbolt 4 outputs, which support triple monitor setups for improved workflow efficiency or previewing e-commerce content.

With 8K UHD display support, the MSI Cubi 5 12M can be used as Home-Theater/Media PC.

Wi-Fi 6E & Dual LAN

Network connectivity includes up to Intel Wi-Fi 6E AX211 (up to 2.4 Gbps), Bluetooth 5.3, and 2.5G + 1G ethernet LAN.

Thunderbolt 4

Thunderbolt 4 brings Thunderbolt to USB-C at incredible speeds up to 40 Gbps to create one compact port that does it all.

USB 10Gbps Type-A

Thunderbolt 4 brings Thunderbolt to USB-C at incredible speeds up to 40 Gbps to create one compact port that does it all.

VESA Mountable Design

The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment.

MSI Center & Cloud

The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment.

  • Spec Table
  • MKT Name Cubi 5 12M
    MKT Spec Cubi 5 12M-094BTH
    Color ID1/Black-Black-Black
    EAN 4711377135061
    Operating Systems N/A
    CPU Number Intel Core i7-1255U
    CPU Clock 1.7GHz
    CPU Cores 10
    TDP 15W
    Cache 12 MB Intel® Smart Cache
    Threads 12
    CPU Cooler Air cooling
    Chipsets Soc
    Memory Module Type SO-DIMMMemory Slot(Total) 2Memory Slot(Free) 2Max Capacity Max 64GB
    Audio Realtek ALC256, 2.1 Channel HD Audio
    LAN 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG
    WLAN INTEL/AX211.NGWG.NV
    WLAN Version Wi-Fi 6E+BT
    BT Version 5.3
    Storage M.2 slots(Total) 1M.2 slots(Free) 13.5" Drive Bays(Free) 02.5" Drive Bays(Total) 12.5" Drive Bays (Free) 1
    Thunderbolt 1x (ThunderBolt 4)
    I/O Ports (Front) 2 x USB 3.2 Gen 2 Type A
    Mic-inHeadphone-out combo 1
    Keyboard Interface USB
    Mouse Interface USB
    Power Cord 1
    AC Adaptor 1
    Quick Guide 1
    VESA Mount kit 1
    Keyboard SK9626M
    Mouse SM9023M
    I/O Ports (Rear) 2 x USB 3.2 Gen 2 Type A (R)
    RJ45 2
    HDMI™ out 1x (v2.0b)
    DP out 1x (v1.4)
    Power 65W, ADAPTOR
    Warranty 36months
    VESA size 100 x 100 mm
    Product Dimension (WxDxH) (mm) 124 x 124 x 53.7
    Product Dimension (WxDxH) (inch) 4.88 x 4.88 x 2.11
    Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
    Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
    Outer Carton Dimension Standard (WxDxH) (mm) 221 x 506 x 469
    Outer Carton Dimension Standard (WxDxH) (inch) 8.7 x 19.92 x 18.46
    Weight (Net kg) 0.59
    Weight (Gross kg) 1.33
    Liter 0.66L
    Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
    Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
    Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
